SavvyTanks V3 Setup Guide

SavvyTanks V3 is an add-on to our existing control panels. Designed to be plug and play with minimal setup. Please follow the instructions below to install and configure SavvyTanks V3 to work with your compatible* control panel.

Connectivity and Comptable Devices

SavvyTanks V3 is capable of monitoring:

Up to 3 water sensors for your 'Fresh', 'Grey' and 'Black tanks. SavvyTanks works with CBE PC200 tank probes, whether purchased from us or elsewhere.
LPG tanks with built in 0-90 or 0-95 ohm sender. We typically see Gasit and Propex underslung tanks been connected but all 0-95 ohm senders are compatible.
Control 12v Gas Isolation Solenoid using the built in Ultra Low Current Driver
Grey Waster remote drain point.

SavvyTanksV3 connects back to our control panels using Bluetooth so no wiring is required*

*Please note: SavvyTanks V3 is not compatible With SavvyVan Lite

Whats in the box?

As we try to keep our device as simple as possible, the only thing in the box is SavvyTanks V3. You may have ordered additional water sensors to work with your device.

Wiring

Wiring up our device couldn't be simpler. Our module needs only a 12v power supply and to be connected to the sensors of your choice.

Powering the device

To power all of our Add-On's, we simply require a 12v 1a fused supply. As clearly marked on the device, please wire up the 12v supply via the +/- power screw terminals. Ensure you correctly wire the device, incorrect polarity may damage the unit.

Connecting the Water level Sensors

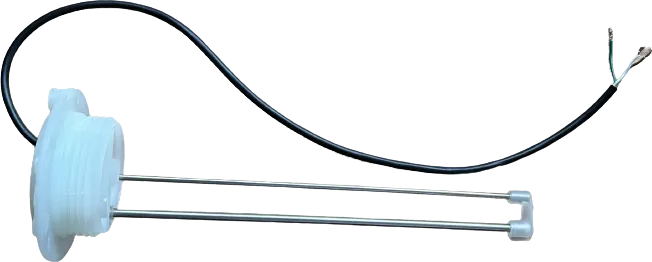

To connect your CBE PC200 Water sensors, remove the white connector from the sender and extend the cable if needed. Please note that the plastic cap at the end of the probes need to stay on.

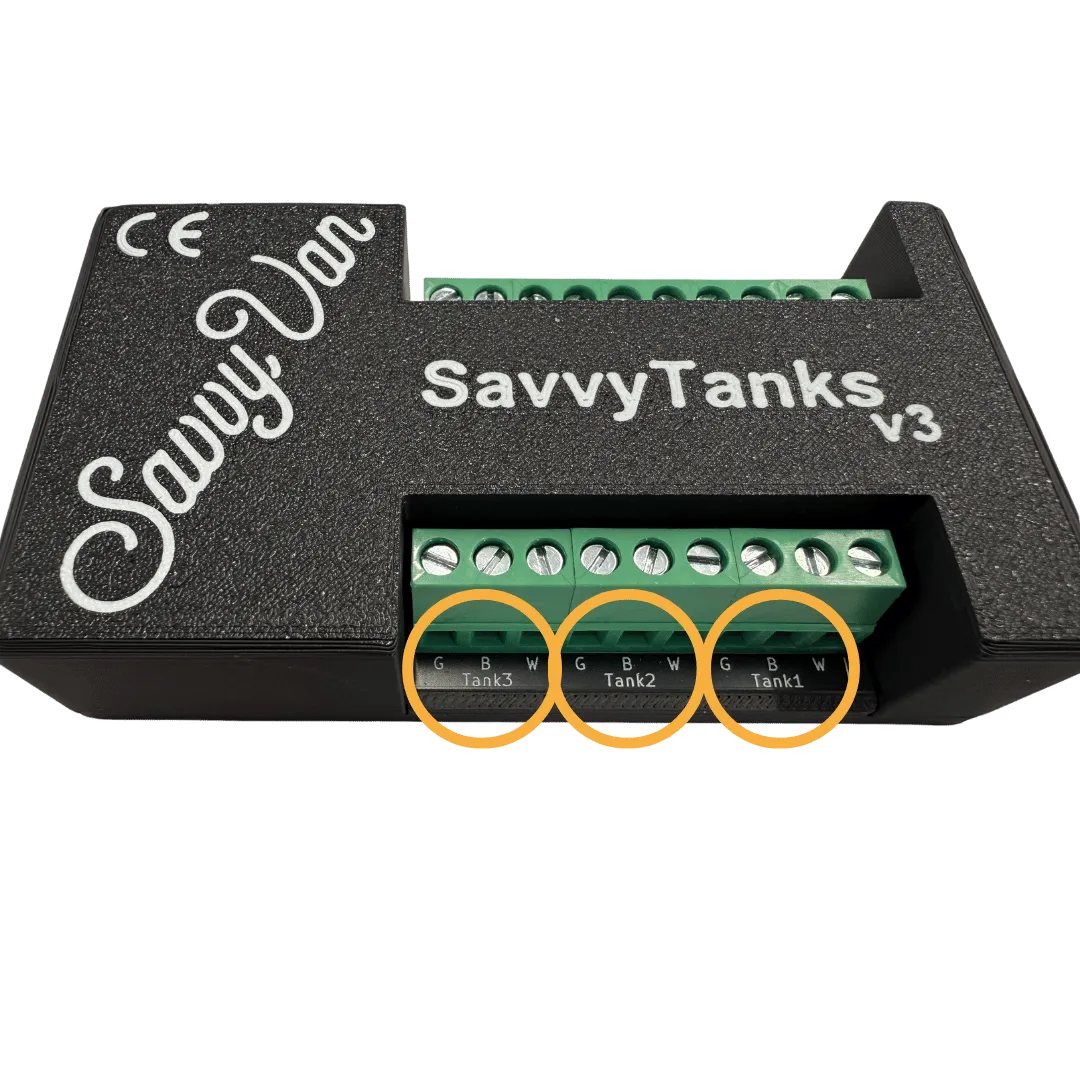

On the Tanks unit you will see Tanks 1 - 3 clearly marked. You can use any of these connections for your water probe however the default configuration is:

Tank 1 - Fresh Water
Tank 2 - Grey Water
Tank 3 - Black water.

This is configurable within the display unit.

Connect your wires as labelled:

White = W

Brown = B

Green - G

Connecting the Gas level Sensor

SavvyTanks will work with any 0-90 or 0-95 ohm sender. The wiring is not polarity specific and so these can be wired up to the GAS screw terminals either way round.

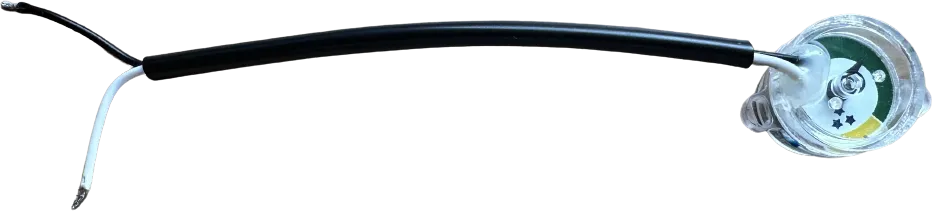

From your Gas sender, you should have 2 wires, simply connect these to SavvyTanks to the connectors labelled GAS.

Connecting the Gas Solenoid

SavvyTanks V3 has a built in Ultra Low Current Driver and is capable of controlling the remote gas solenoid for your underslung gas tanks. This is fully tested with Gasit, Propex and Autogas2000 tanks. However will work with any 12v solenoid.

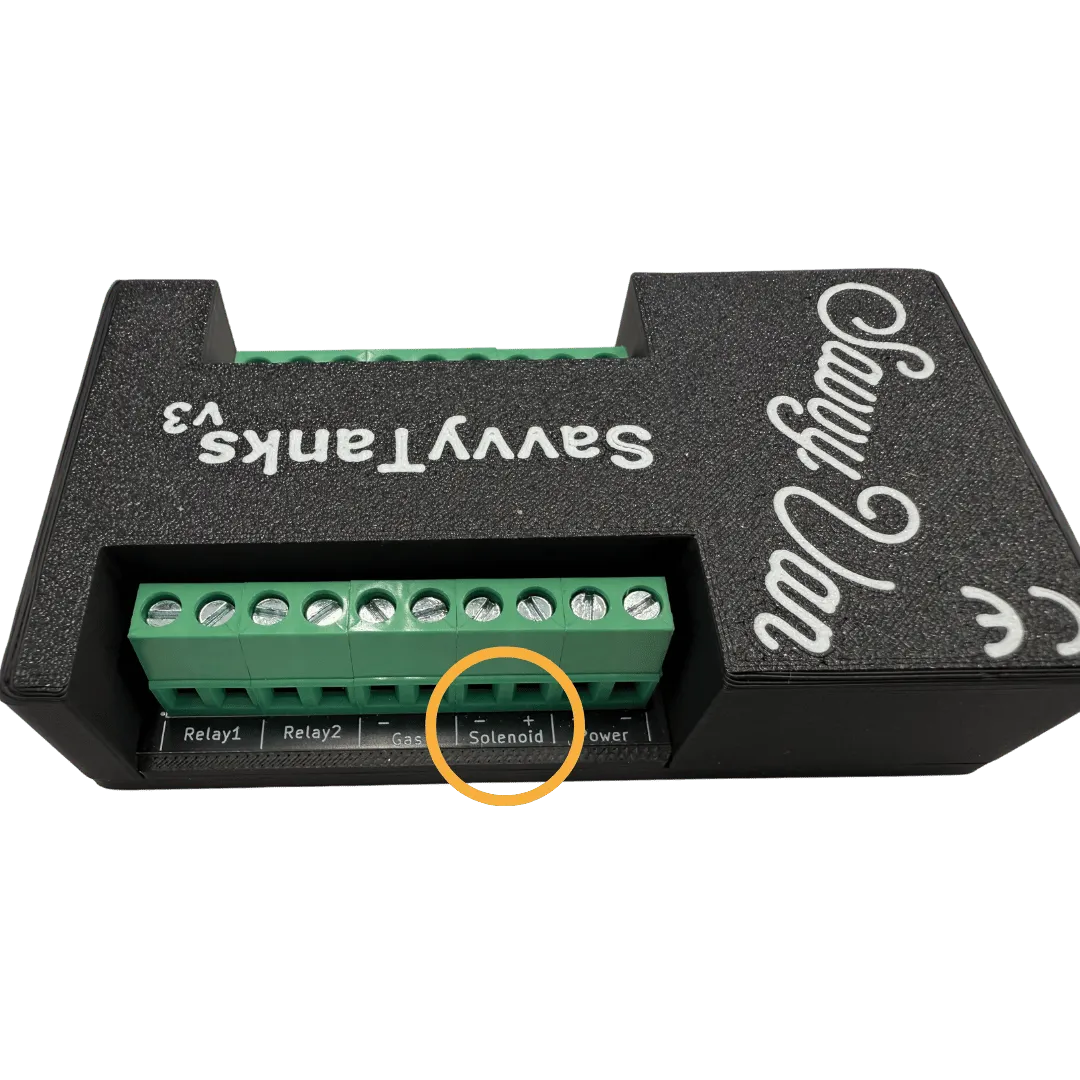

To connect your solenoid, connect the +/- from your solenoid to the +/- Solenoid terminals on the SavvyTanks V3 module.

Connecting the Remote drain valve

SavvyTanks V3 can connect to a 12v auto return remote drain valve for your water tank.

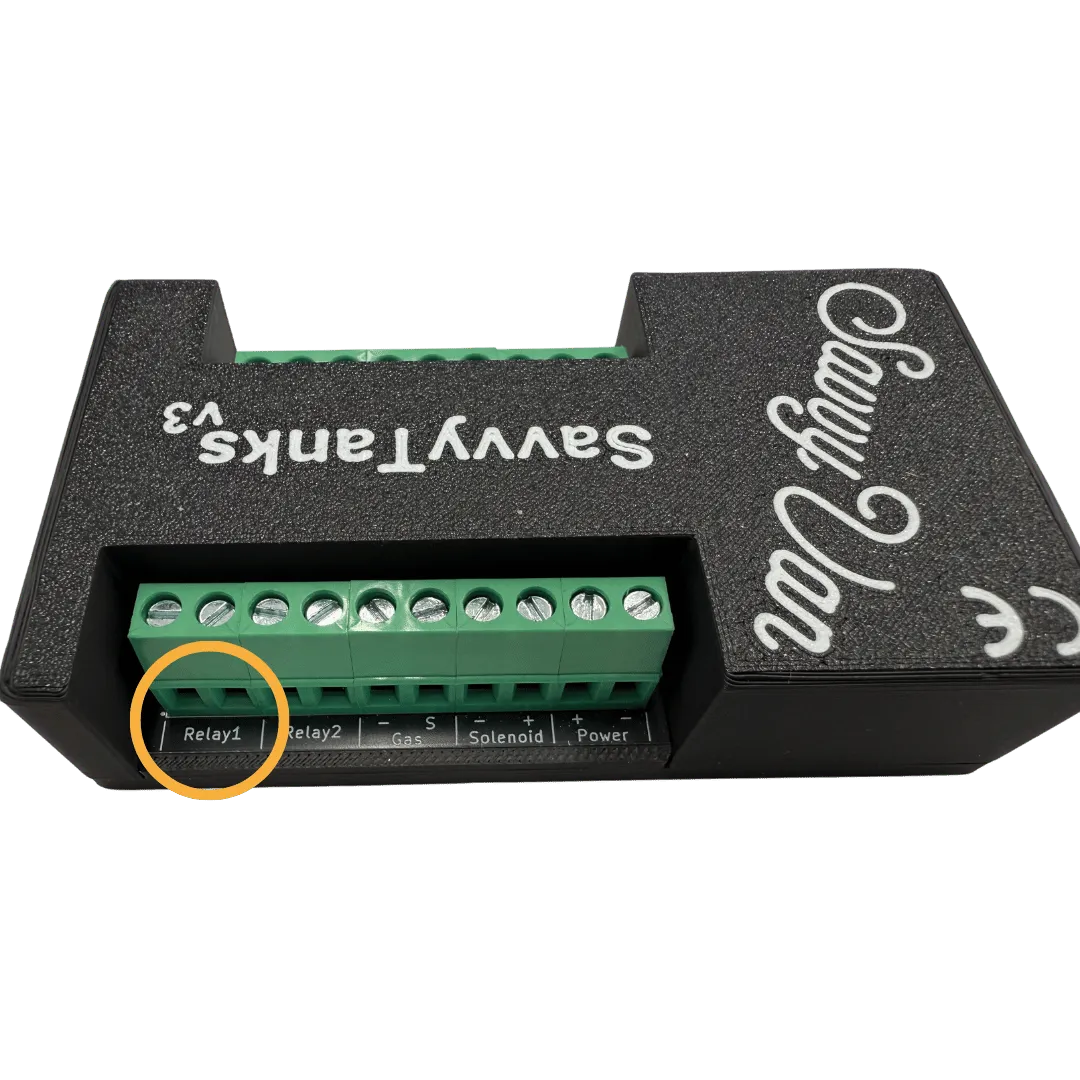

To connect your 12v operated drain valve. Connect the live wire to your 12v feed as per the manufacturer’s recommendation. To switch the supply from on/off which will activate the valve, connect your Negative wire from the valve into 1 of the terminals on relay 1 or 2. Then the other terminal to ground.

Our system works by disconnecting and reconnecting the single wire passing through each Relay

Connecting any other 12/24v accessory

SavvyTanks V3 has 2 relays built in and can be used for any accessoriy with a max of 10a per relay.

To connect an accessory, connect the live wire to your 12v feed as per the manufacturer’s recommendation. To switch the supply from on/off, connect the negative wire from the valve into 1 of the terminals on relay 1 or 2. Then the other terminal to ground.

Our system works by disconnecting and reconnecting the single wire passing through each Relay

Linking to your SavvyVan Control Panel

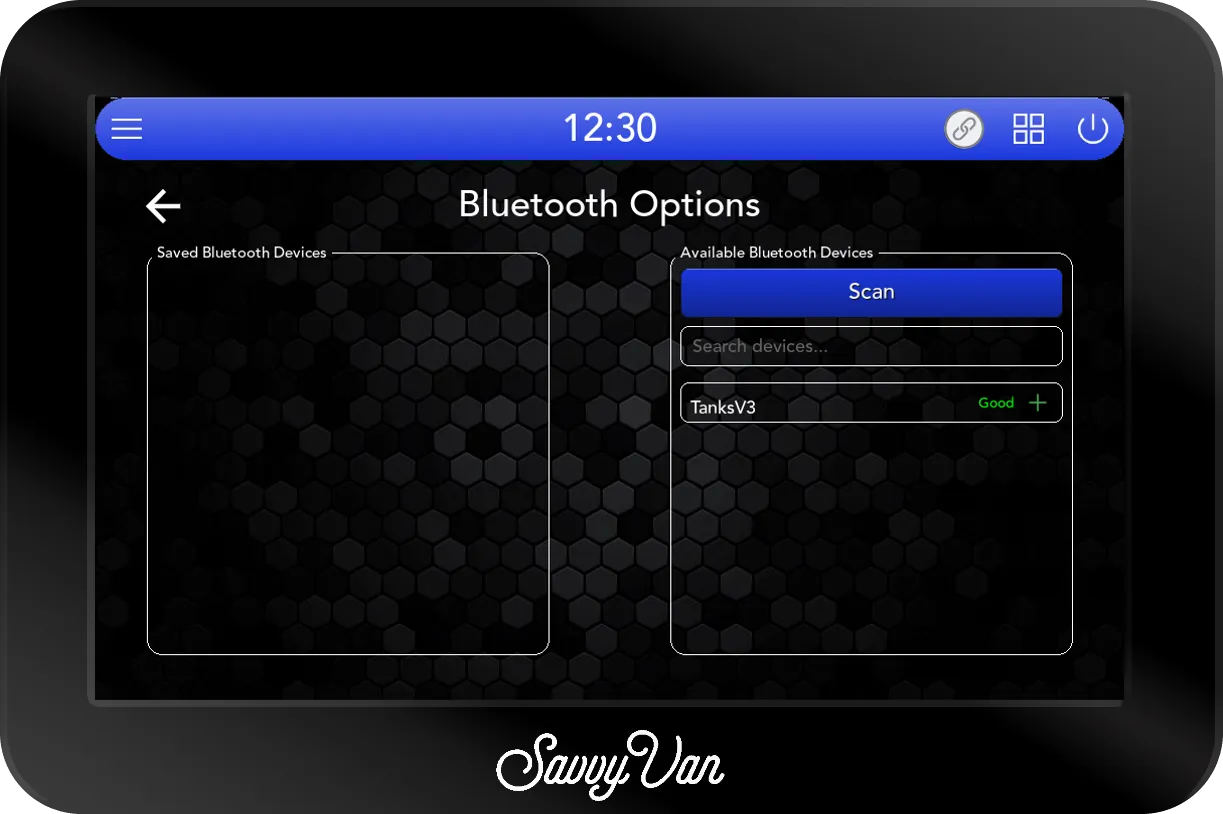

To connect to SavvyTanks V3 via Bluetooth using your SavvyVan display, please navigate to Installer settings > Enter your passcode > Bluetooth Devices > Scan for devices.

Your SavvyVan unit will search for nearby Bluetooth devices, please select the Green + next to 'TanksV3' as shown below

Now your device is connected, please navigate back to setting then into 'Tank Settings'

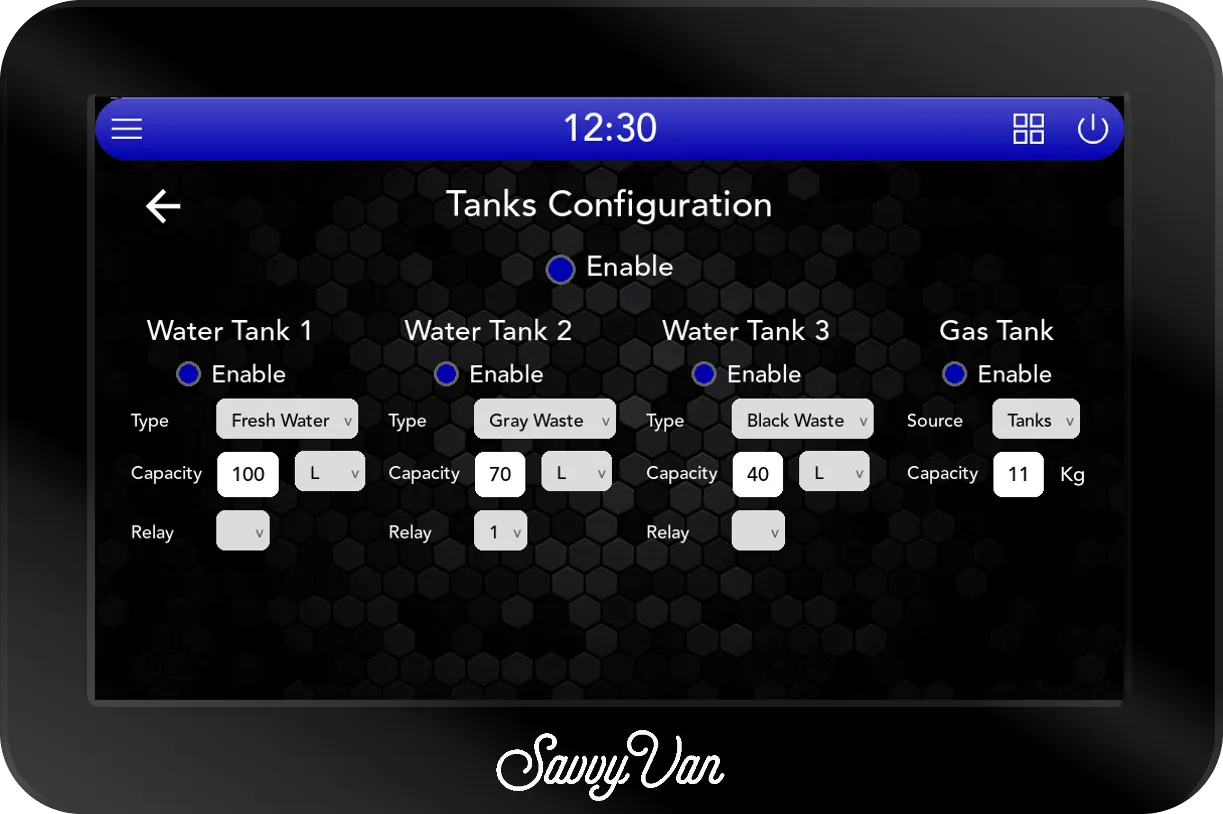

Within Tank Settings you can enable the SavvyTanks feature. Once Enabled please select the tanks that you have made the physical connections to. You are then able to configure:

Tank Type - Select the kind of tank you have connected from Fresh, Gray or Black.
Capacity - Select your tanks capacity.
Relay - Select any relays you have connected to. If a relay is selected, when you click on the tank within the tanks page, it will activate the relay.
The solenoid is automatically linked to the Gas tank.

Using the SavvyTanks

Once configured, you will then see your tank levels on the main screen. If multiple tanks have been selected it will rotate the tanks every 30 seconds. Should a relay attached to the tank be activated then a red circle will show around that tank.

Clicking on the Tank icon will take you to the main tank page where all tanks and their status are visible.

Specifications

Working Voltage 7- 30v

Current draw 0.06a @12v

Dimentions: (L)115mm, (W)55mm, (H)25mm

Warranty

SavvyVan Add-on's come with a 12 month limited warranty which is detailed here,

Disclaimer of Liability

SavvyVan products are designed to provide convenience and safety to users of campervans, motorhomes, and other recreational vehicles. However, improper installation, use, or operation of our products may cause damage to the product itself or other property, or even injury to individuals. Therefore, it is important to read and follow all instructions and safety precautions provided in the installation guide carefully.

SavvyVan and its suppliers shall not be liable for any damage or injury resulting from the installation, use, or operation of its products that is not in accordance with the instructions and safety precautions provided in the installation guide. This includes, but is not limited to, incorrect installation, use or operation of the product, or any modifications made to the product. SavvyVan shall not be liable for any incidental, consequential, or punitive damages arising from the use of its products.

By purchasing and using SavvyVan and its suppliers products, you acknowledge and agree that you assume all responsibility and risk associated with the installation, use, and operation of the product. You further acknowledge and agree to hold SavvyVan and its suppliers harmless and to release it from any liability for any claims, damages, or expenses arising from your installation, use, or operation of its products.

Please contact us if you have any questions or concerns regarding the installation, use, or operation of our products.
